Extruded Aluminum

Extruded Aluminum

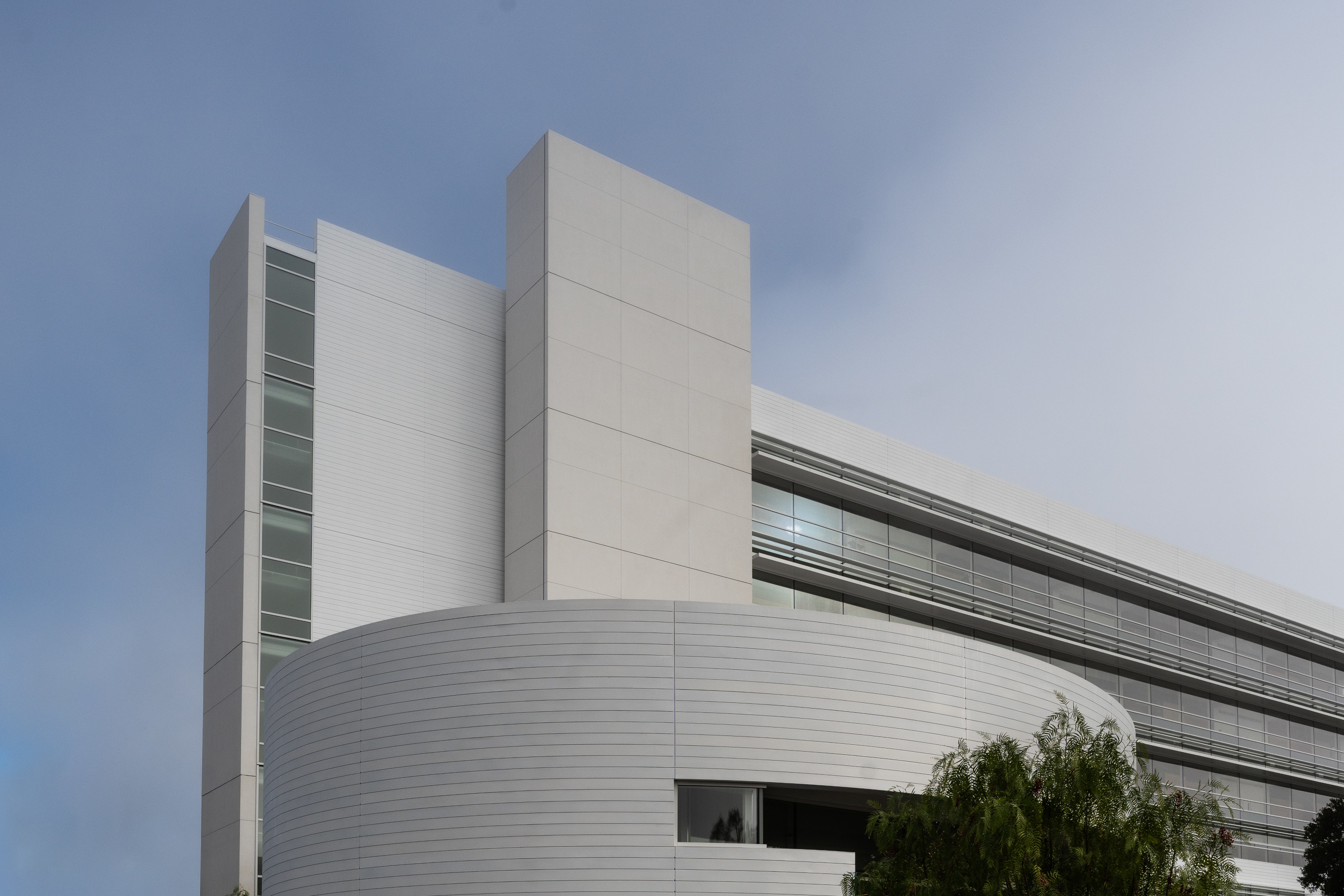

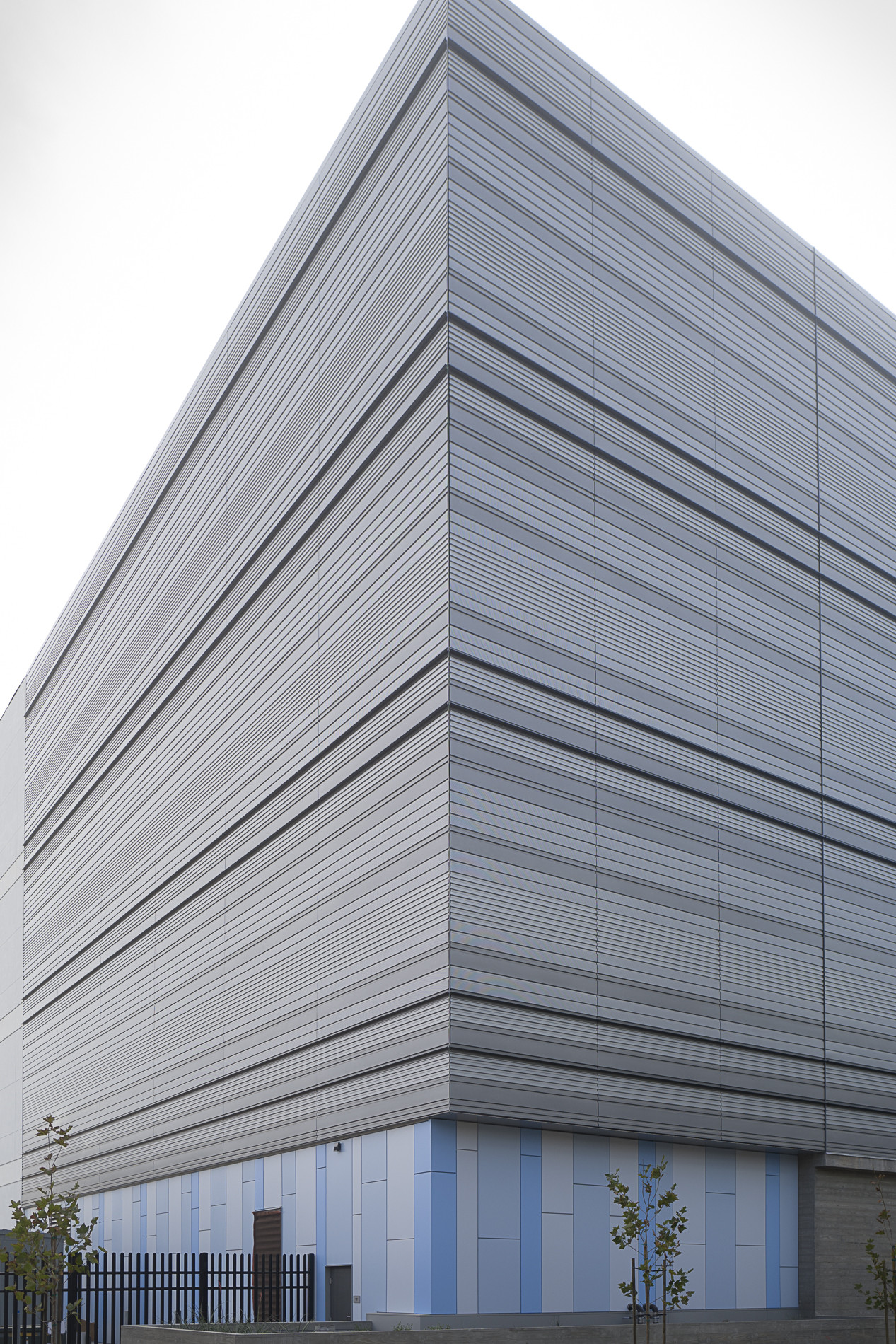

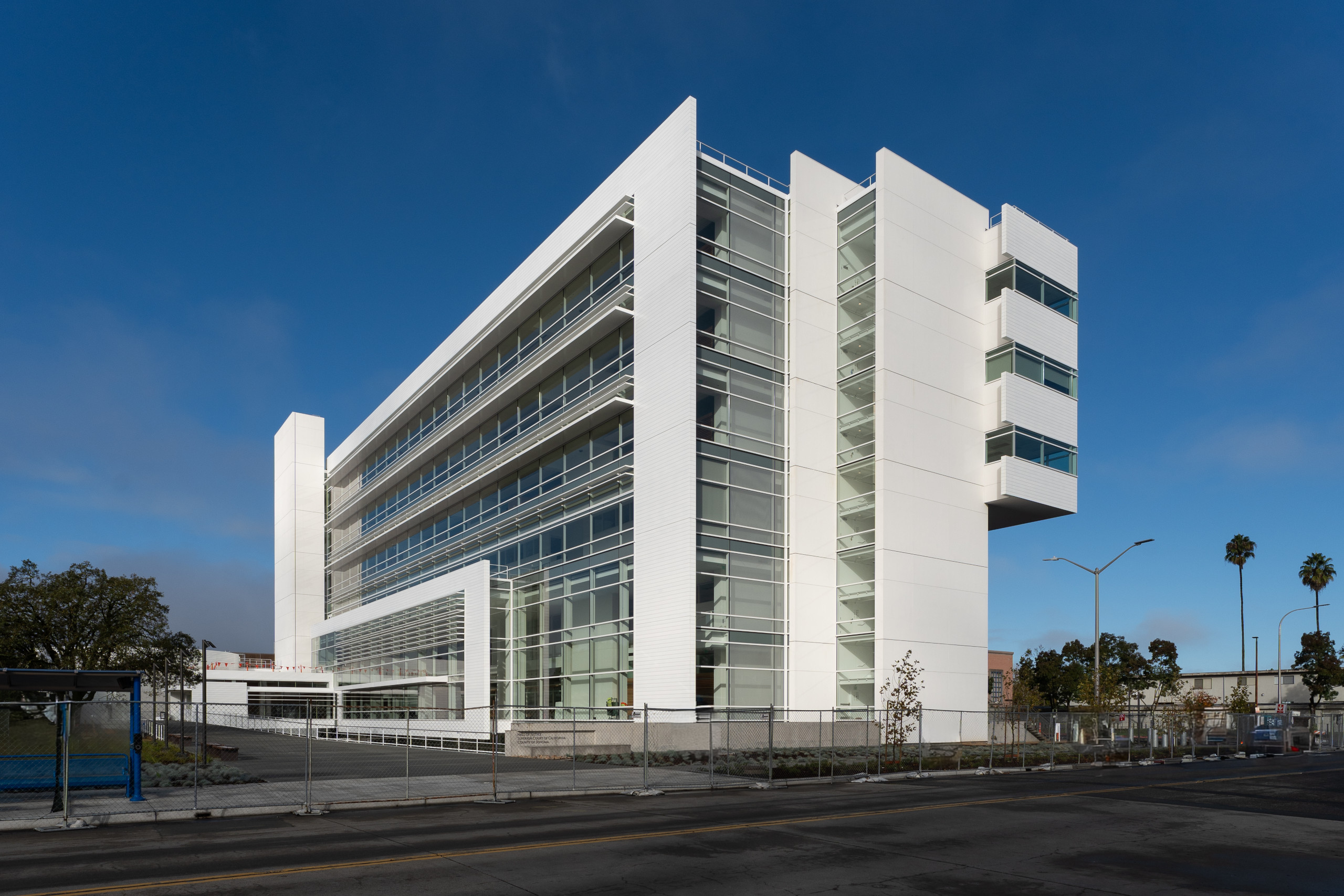

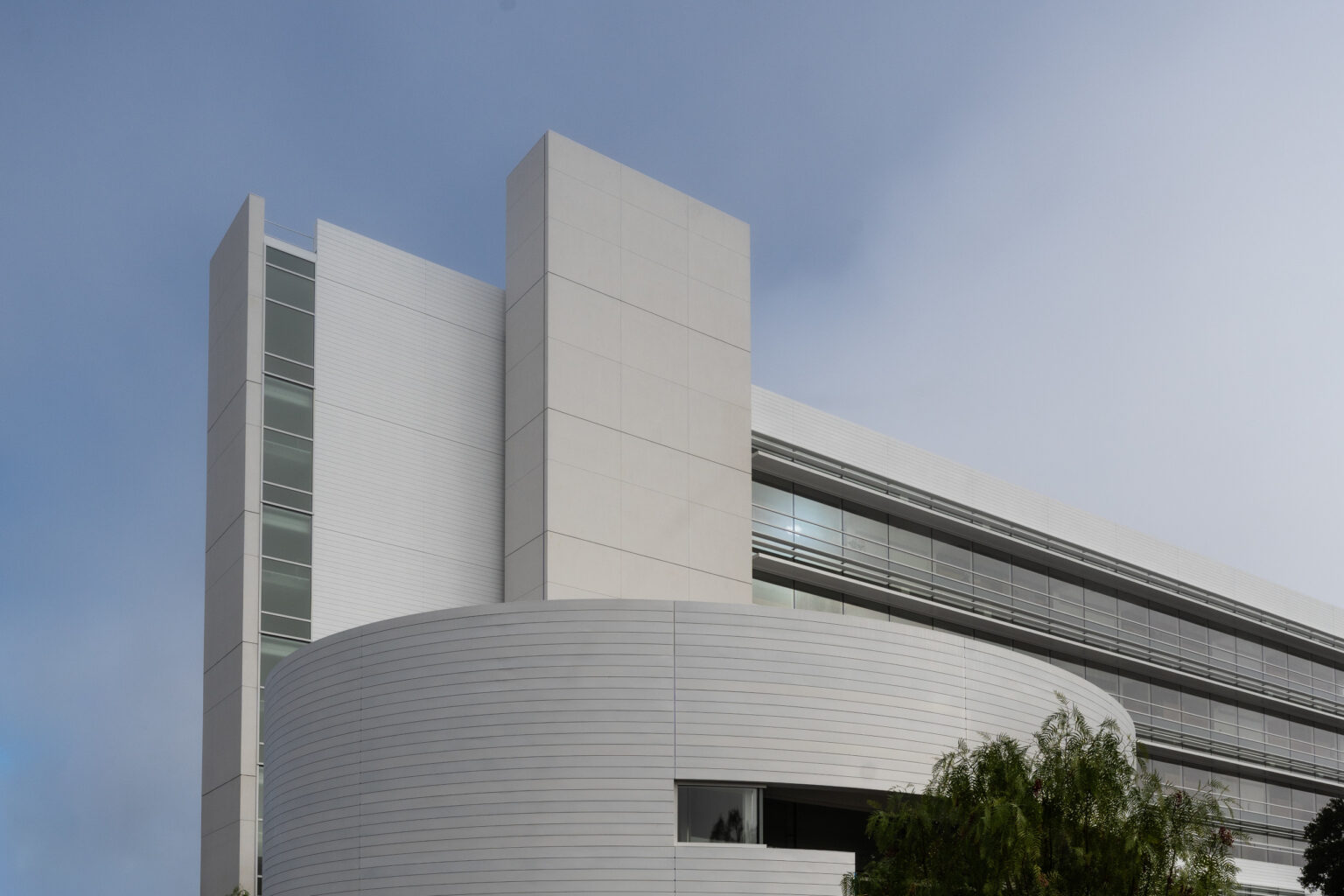

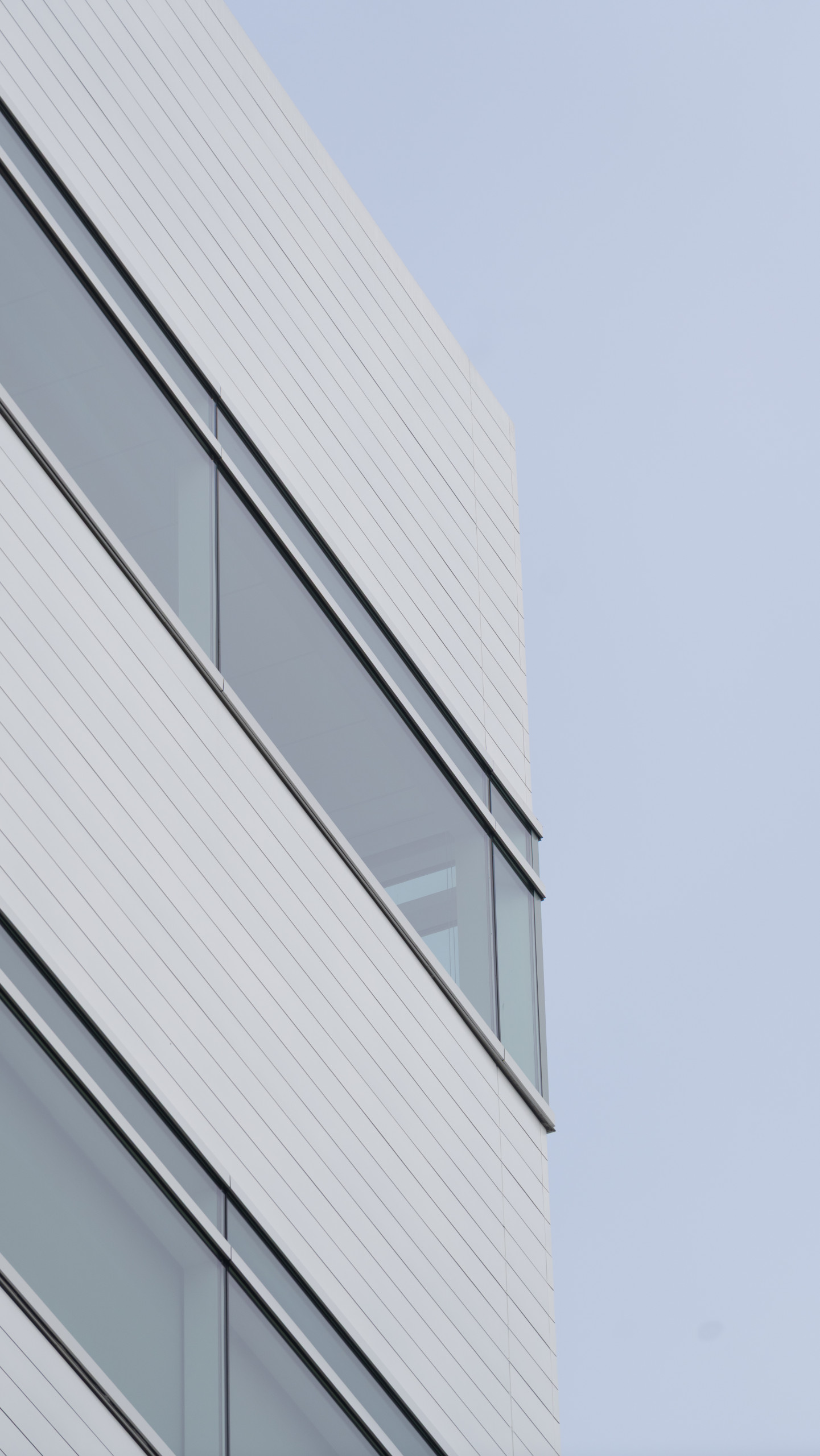

QV 9.5 Extruded aluminum panel systems offer a fully custom, high-performance solution for architectural rainscreen facades. Unlike flat sheet or composite panel products, extruded aluminum panels are engineered per project — each cross-section designed to match the architectural intent rather than forced into catalog limitations. The result is a facade that arrives exactly as drawn, with precision that mass-produced systems cannot deliver.

Features

  • Custom cross-section geometry dies developed per project
  • Standard panel heights range from 6” to 13 ¾”
  • Maximum panel length up to 39′ 4″ (12,000 mm)
  • Material: EN AW-6063 T66 aluminum — solid extruded, no composite layers

Advantages

  • Compatible with concrete, masonry, steel stud, and timber substrates in horizontal or vertical orientation
  • Single point of ordering and engineering responsibility for panels + backup system
  • 30+ year coating service life available with AAMA 2605 / Qualicoat Class 3 fluoropolymer coatings
  • Cavity depth from 2¼”–13¾” (57–340 mm) standard

Sustainability

  • EN AW-6063 T66 aluminum is 100% recyclable with no quality degradation
  • Zero VOC emissions during powder coat application; 100% recyclable overspray
  • EPD-certified coating options available for LEED
  • NFPA-285 compliant assembly; Class A1
