Terracotta Shingle Panel System

Terracotta Shingle Panel System

Terracotta shingle panels offer a small-format ceramic ventilated facade solution that combines the warmth of natural fired clay with a distinctive ship-lap profile. Each panel is 100% ceramic — CE marked and manufactured from milled clays through a controlled firing process — delivering an irregular, deeply textured surface that matures naturally over time. The overlapping installation produces a pronounced horizontal shadow line, creating a facade with strong visual depth and a deliberately artisanal character suited to both contemporary and traditional architecture.

Features

  • 100% extruded ceramic tile — CE marked; recyclable per ISO 20887:2020

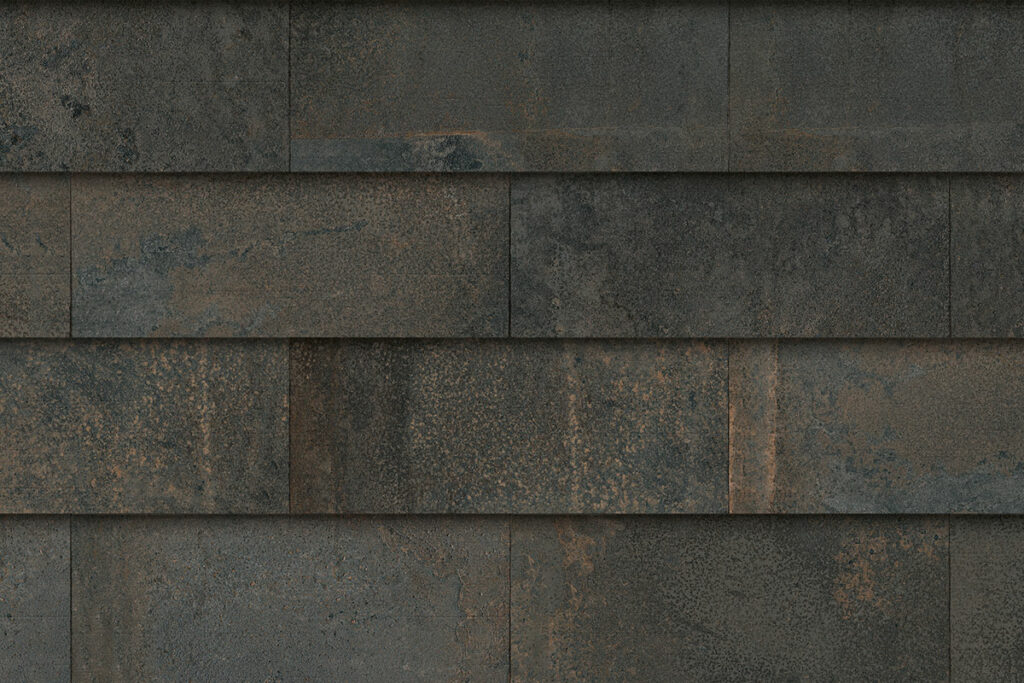

  • Ship-lap profile delivers accentuated overlapping shadow lines when installed

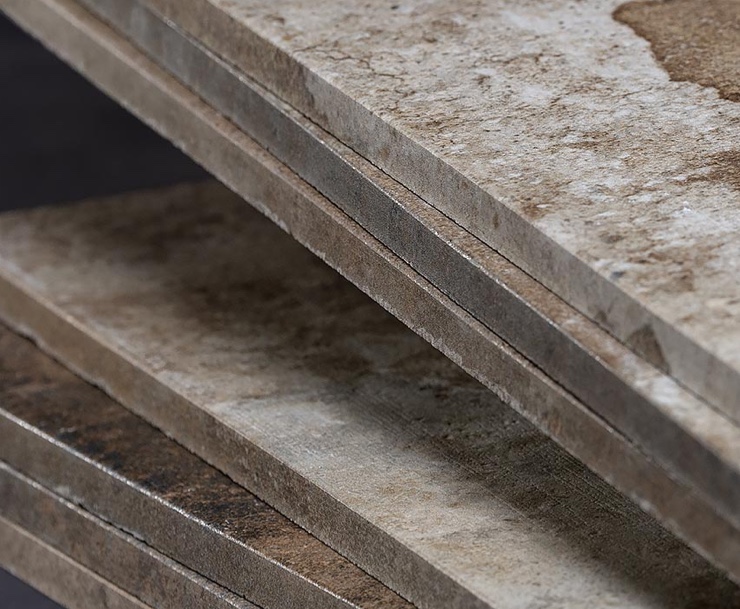

  • Deep, irregular surface texture — characteristic of natural clay firing
  • 7 standard colorways; natural variation inherent to ceramic production

Advantages

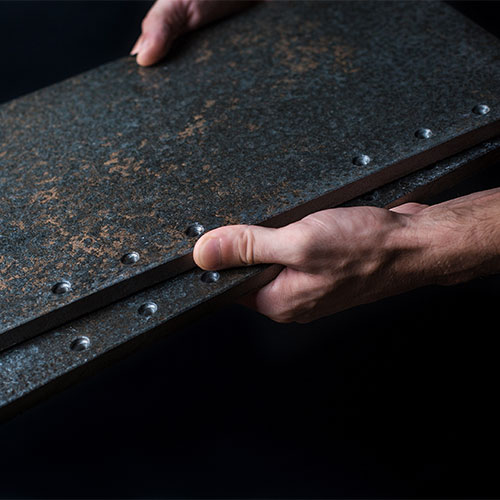

  • Screw-fixed system — each tile pre-drilled with 6 countersunk holes for flush fixing

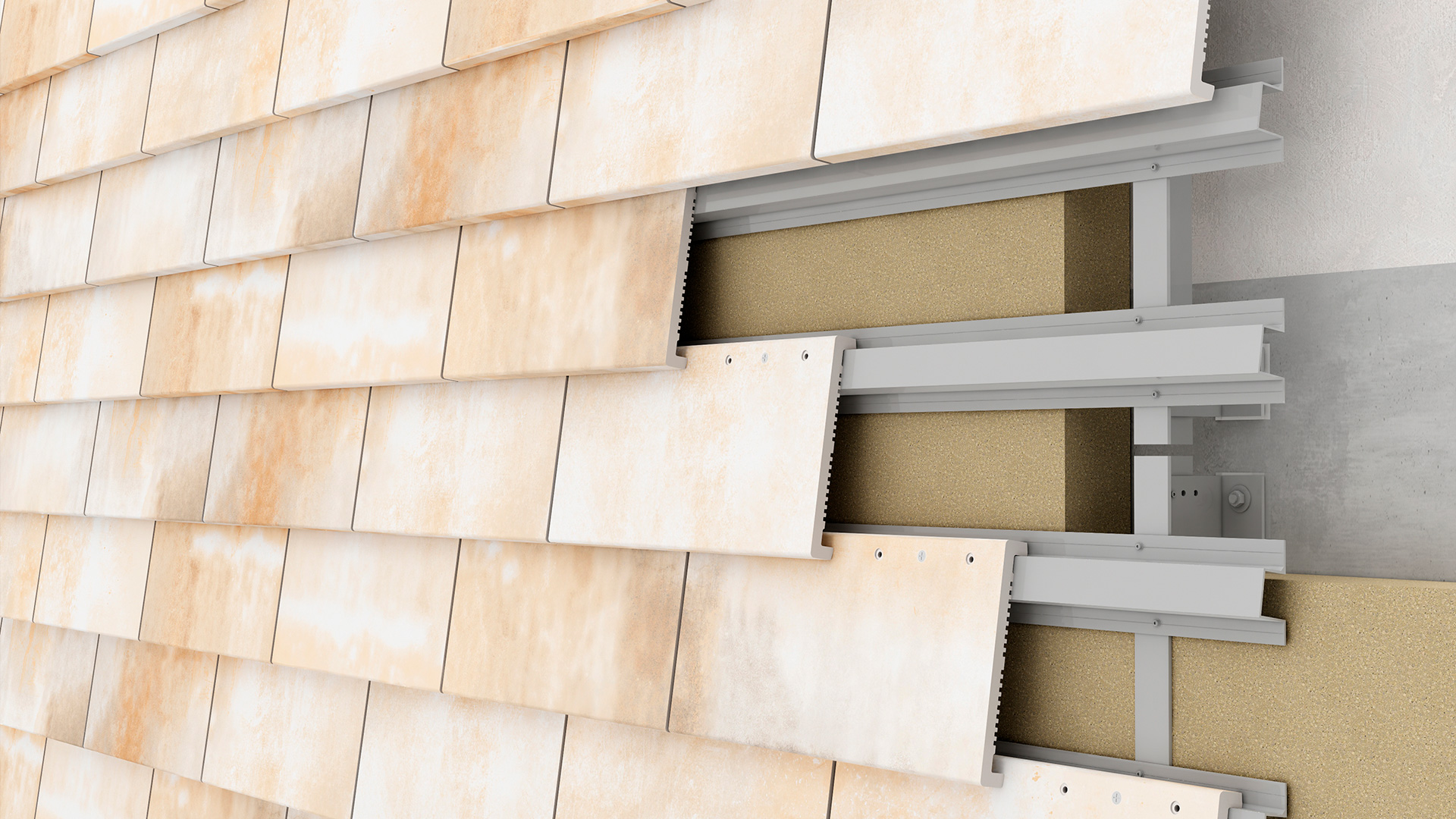

  • Aluminum subframe (6063-T5) — compatible with masonry, concrete, and framed substrates
  • Individual tile replaceability — damaged tiles cut out and re-fixed without full system removal
  • Near-zero maintenance — high-pressure cold water cleaning only; no solvents required

Sustainability

  • 125+ year design lifespan — longest service life of any common facade cladding material
  • 100% natural raw materials — clay-based ceramic with no synthetic binders or coatings
  • Fully recyclable at end of life per ISO 20887:2020
  • No coatings, sealants, or chemical treatments required during service life

Technical Downloads

Product Data

  • neolith_technical-data_en.pdf
  • technical-data-sheet-hc-slim-system
  • technical-data-sheet-hc-system

Catalogs

  • 2025_neolith_catalog_skyline_logo.pdf

3-Part Specifications

  • 07 42 4 Sintered stone rainscreen cladding.doc
